AS10 Air Sensor - Ideal Health

This product is not an air purifier.

Real-time measurements Measures PM2.5 and PM10 particles, VOCs, temperature, humidity and atmospheric pressure in real time.

Smartphone App Control all AP PRO purifiers in network and automatic mode via the free "IDEAL AIR PRO" app.

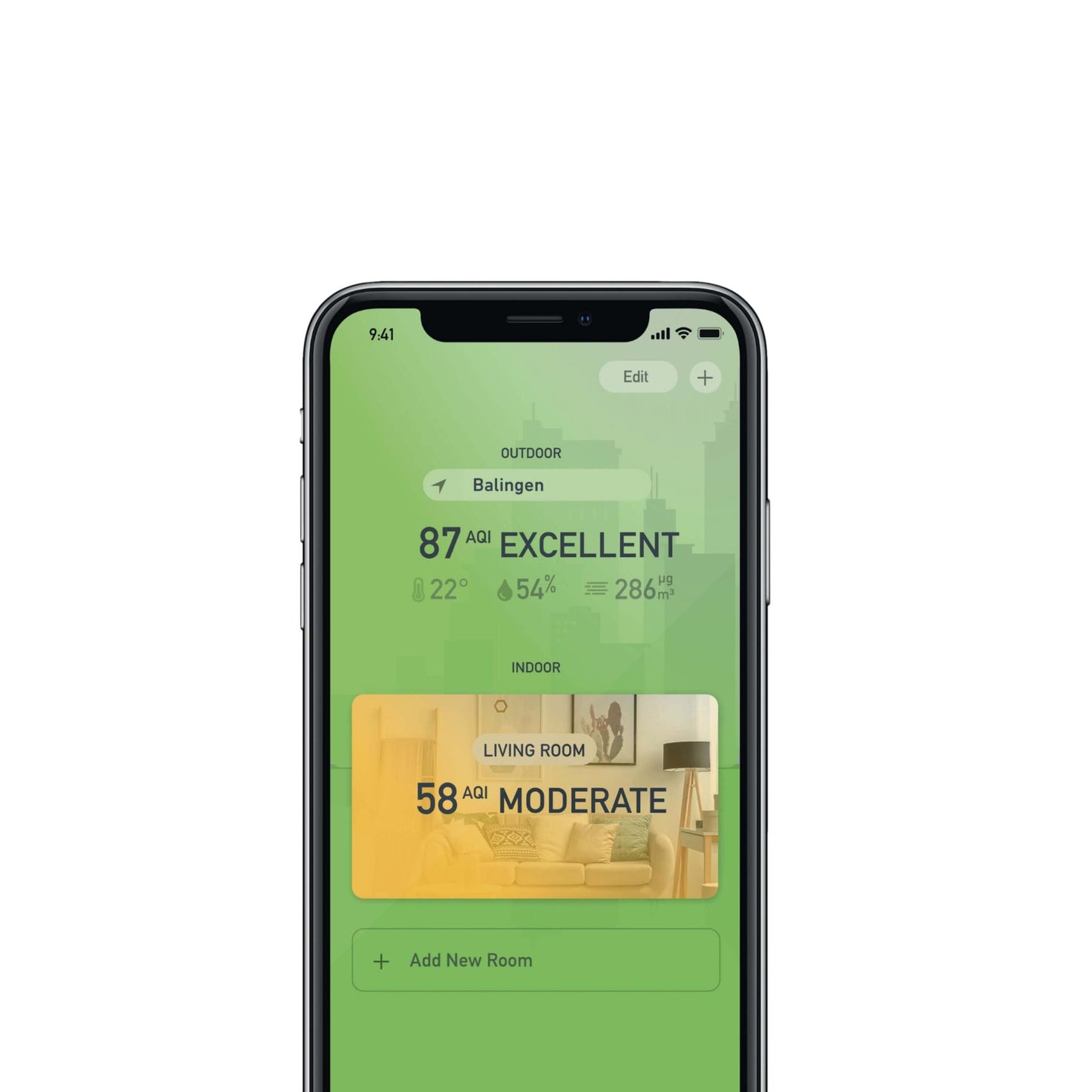

Measurement details All measured values ​​are displayed in the "IDEAL AIR PRO" app. At the same time, the air quality is indicated on the device via a 6-color LED light.

The AS10 air sensor must be permanently connected to a power source with a 5V micro USB cable. The pollutant sensor must be recalibrated after 24 months of use (detailed instructions in the mobile app).

Power supply	micro USB cable (5V)
Power consumption	max. 500 mA
Measurement interval	1 second
Transmission interval	60 seconds
Calibration interval	24 months
Dimensions (H x W x D)	65 x 65 x 65 mm
Protection index	IP20
Weight	150 g

MEASURED VALUES

Volatile organic compounds

(VOC) Range: 0 – 32768 ppb

Resolution: 500 ppb

Fine particles PM10 / PM2.5

Range: 0 – 1000 ?g/m³

Resolution: 1 µg/m³

Temperature

Range: -10 to +50°C

Resolution: 1°C

Ambient humidity

Range: 20 – 90%

Resolution: 1%

Atmospheric pressure

Range: 20 – 110 hPa

Resolution: ± 0.4 hPa

Contents: AS10 indoor air sensor, micro USB cable, user manual.
